Poclain MS125 Hydraulic Piston Motor 0-50 R/Min With Indirect Drive Capability

Name: Poclain MS125 Hydraulic Piston Motor 050 RMin With Indirect Drive Capability
Brand: Helm Tower
Price: 1 USD

China Poclain MS125 Hydraulic Piston Motor 0-50 R/Min With Indirect Drive Capability factory

Brand Name : Helm Tower

Model Number : MS125

Certification : ISO 9001

Place of Origin : Ningbo

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300 units per month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Wooden Case

Type : piston motor

Color : customized

Speed range : 0-50 r/min

Torque range : 32850-49300 N. m

Rated pressure : 25MPa

Max pressure : 31.5 MPa

Contact Now

Poclain MS125 Hydraulic Piston Motor 0-50 R/Min With Indirect Drive Capability

Features:

HMS125 series Hydraulic Motor

1.radial piston design.
2.higher output torques,lower output speed,smoother output speed at low speeds.
3.optimized and modular design capable of delivering high performance.
4.highly efficient at any speed or operating pressure.
5.withstand the most extreme operating conditions and require very little maintenance.

**IMPORTANT INFORMATION**
As with any hydraulic system, proper flushing of the system is crucial to the system performing at its maximum efficiency. Before installation, make sure all lines, filters, and reservoirs are flushed, cleaned and properly inspected or replaced before installing knew hydraulic pump, motor or transmission.

Displacement diagram:

Displacement Group	8	0	2
Displacement(ml/r)	10000	12500	15000
Theoretical torque a 10Mpa(N.m)	15900	19875	23850
Rated speed(r/min)	50	40	30
Rated pressure(Mpa)	25	25	25
Rate torque(N.m)	32850	41100	49300
Max pressure(Mpa)	31.5	31.5	31.5
Max torque(N.m)	40500	50650	60800
Speed range(r/min)	0-50	0-40	0-30
Max power(kW)	standard displacement is 240kw,variable displacement priority rotation 160kw

Poclain MS125 Hydraulic Piston Motor 0-50 R/Min With Indirect Drive Capability

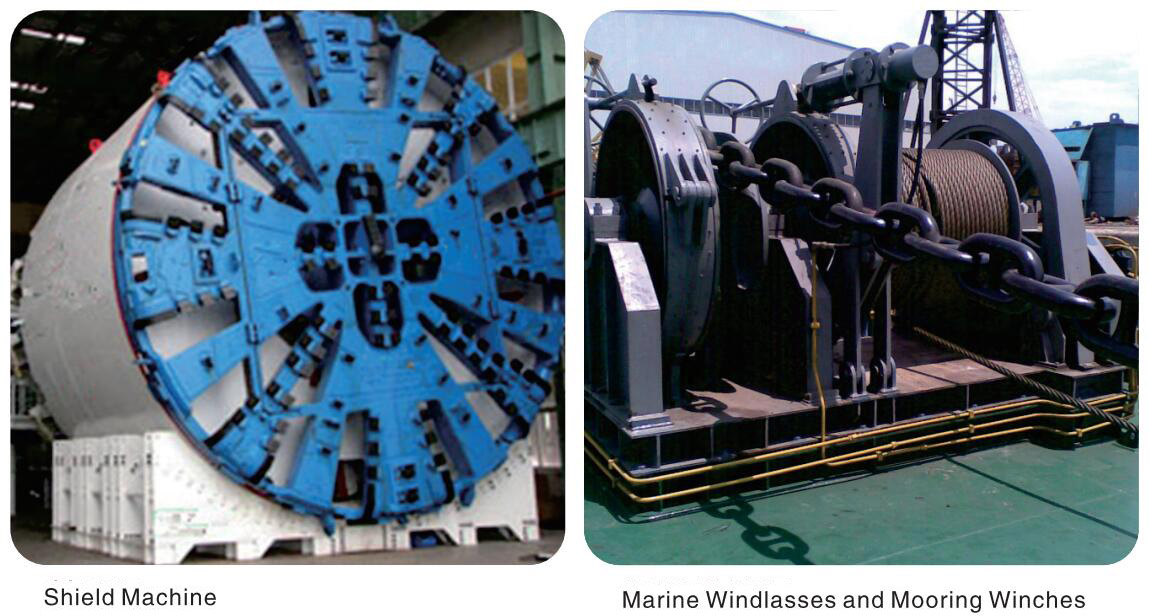

Applications:

Construction Machinery
Shield Machine, Road header,Bucket Wheel Machine,Oil Drilling Equipment
Mining Machinery
Heavy duty handling car,coal mine drill

MS125 Connection Dimension:

High precision testing facilities and experienced inspectors.
