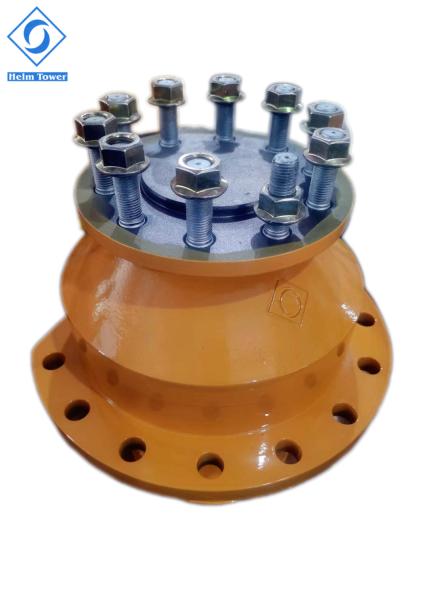

Poclain MS05 Radial Hydraulic Piston Motor For Construction Machinery

Brand Name : Helm Tower

Model Number : Poclain MS05 MSE05

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 500 sets per month

Delivery Time : 15 days

Packaging Details : Wooden case

Warranty : 1 year

Color : Customized

Type : Hydraulic piston motor

Material : Steel

Rated speed : 80-160 r/min

Max. pressure : 31.5 MPa

Contact Now

MS05 MSE05 Hydraulic Piston Motor Poclain For Construction Machinery


Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control

Type

Displacement

 MS05-8 MS05-9 MS05-0 MS05-1 MS05-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 376 188 468 234 514 257 560 280
Max power(kw) 25 17 25 17 25 17 25 17

Pressure discrepancy 10MPa Torque

(N.m)

 562 275 699 343 768 376 837 410
Rated torque(N.m) 1405 1749 1921 2092
Rated pressure(MPa) 25 25 25 25
Max pressure(MPa) 40 40 35 35
Rated speed(r/min) 90 90 85 80
Speed range(r/min) 0-200 0-200 0-190 0-180

HMS05 Applications:

Engineering Machinery:Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine,

Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers,

Mining Machinery:Scraper,Road Header,Heavy Duty Handling Car,Coal Mine Drill

Special Vehicles:Fire Engine

Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:

Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125

Poclain MK04,MK18,MK23,MK35,MK47

Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO

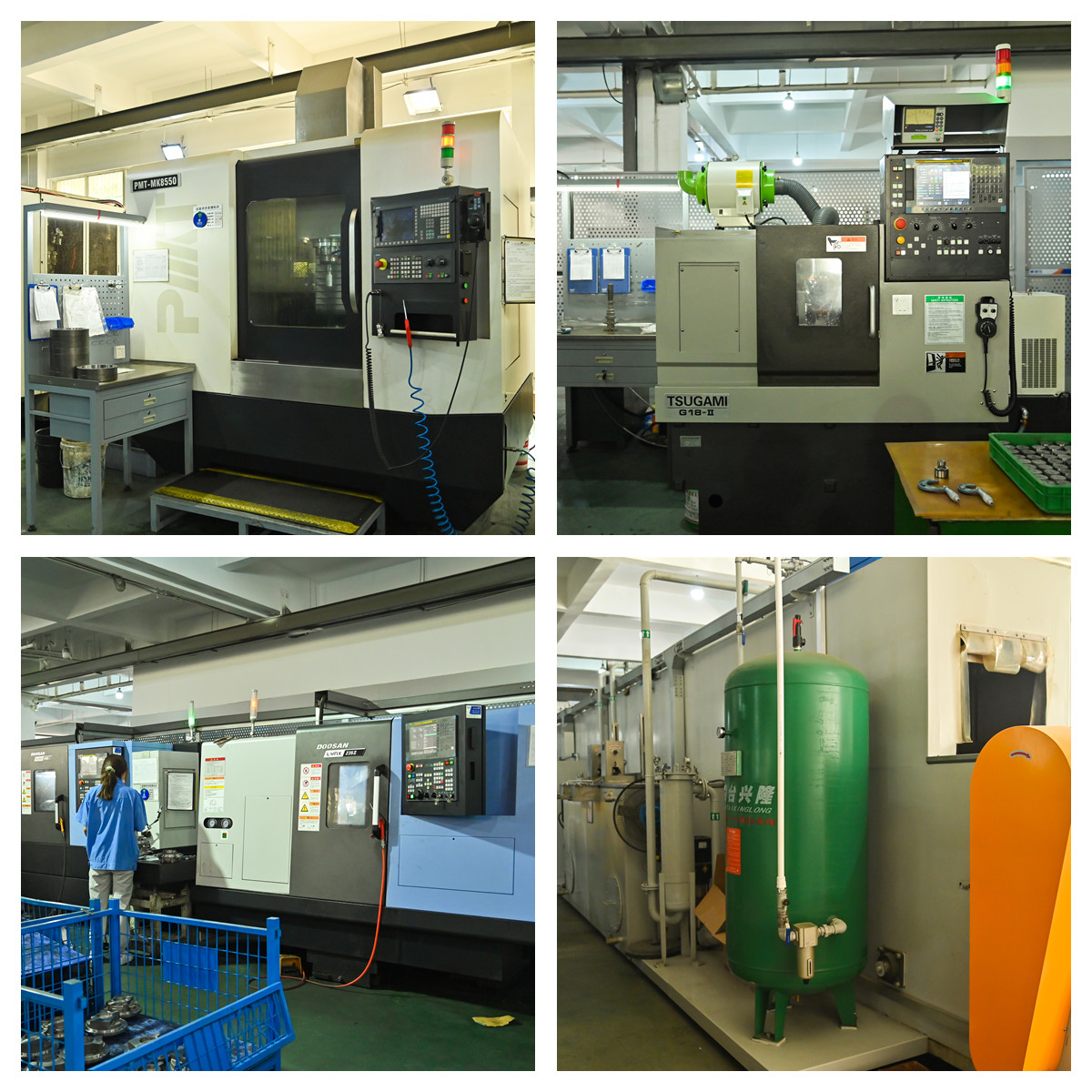

Workshop View:

Poclain MS05 Radial Hydraulic Piston Motor For Construction Machinery

Poclain MS05 Radial Hydraulic Piston Motor For Construction Machinery

Poclain MS05 Radial Hydraulic Piston Motor For Construction Machinery

Quality Control:

Poclain MS05 Radial Hydraulic Piston Motor For Construction Machinery
